Tips on Formatting Data Before You Run a Chart

Formatting and Selecting Your Data Correctly

We have tried to foolproof QI Macros, but we have to make certain assumptions about the data you select before running a chart. One assumption is that you have no more than one row of headings and one column of labels. If you have two rows of headings or two columns of labels BE CAREFUL. Selecting the extra columns or rows will create problems with your calculations and with your chart.

The example below has two rows of headings. Row 1 "Smoothness" and Row 2 : date, time, Obs 1, etc. It also has two labels. Column A for date and column B for time.

data with two heading rows and two columns of labels

The Problem with Selecting Two Rows

If you select the two heading rows like this, QI Macros will determine there are two labels since both rows contain text.:

data with two rows of headings

Your chart will be correct.

XbarR chart

The Problem with Selecting Two Columns

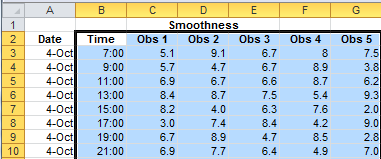

If you select two columns of labels like this:

data with two columns of  labels

Your chart may look okay, but if you move the chart to the right and look at the cells where the calculations are performed, you will notice that column B is included in the calculations. In the example below, cell H3 which calculates the average of the data points is including the time label in column B as part of its calculations. A value of 7 is being added to the values of 5.1, 9.1 etc. to calculate the average in column H.

data formulas

Foolproof your charts by formatting your data with only one descriptive row and column.

Case Study Smoothness of Gel Caps from Quality Magazine Brain Teaser

The following case study uses Dr. Sophronia Ward's Brain Teaser column in the December 2005 issue of Quality Magazine.


After a recent improvement in the surface smoothness of gel capsules, a process engineer received complaints from a customer that the capsules were sticking to the chutes on the production line. After ruling out the machine as the cause, the team looked into the surface smoothness of the gel caps.

Download the data for this example (XLS)

Case Study Question 1

Is there evidence in the data that the recent efforts to improve the gel cap smoothness did result in a change to the surface smoothness?

To determine this, we will want to run a control chart on data before and after the process change. The data in Dr. Ward's example looks like this:

Case study data

Reformat the Data Before You Run the Chart

The data table provided by Dr Ward shows the "before" and "after" data side by side. In order, to run a control chart using QI Macros we need to move the "after" data below the "before" data. Select the data and then select Edit/Cut, next click on the cell below the before data and select Edit/Paste.

Using a Blank Row to Show Before and After a Process Change

Finally, insert a blank row between the Oct. 5 data and the Oct. 12 data to take advantage of QI Macros ability to calculate different sets of control limits for the before and after data. Your data should look like this.

blank row to show process change

Selecting Your Data for the XbarR Chart

Since we have 5 samples or observations for each date and time we will select the XbarR chart. The XbarR chart will calculate an average for the 5 points for each date and time and graph these averages. The XbarR chart is sometimes referred to as the average and range chart. Using the rules discussed above we will only select one descriptive row and column when we select the data to run a chart. Our selection looks like this:

XbarR chart data

The X and Range charts looks like this:

XbarR chart

Response to Question 1: The before and after charts show a very unstable process right after the process change and then a definite decrease in surface smoothness. The range chart shows that the variation in surface smoothness has decreased as well.

Case Study Question 2: Is there evidence in the data to indicate that the new gel caps are too smooth?

Response to Question 2: The smoothness has definitely changed, but it would require more analysis to determine if they are too smooth.

Case Study Question 3: How can the process engineer determine the optimal surface smoothness?

Response to Question 3: They would need to run a designed experiment.

Here's the Point

QI Macros are smart but they are not foolproof. Remember this rule when you select your data. Only select one row and one column of headings or labels.
